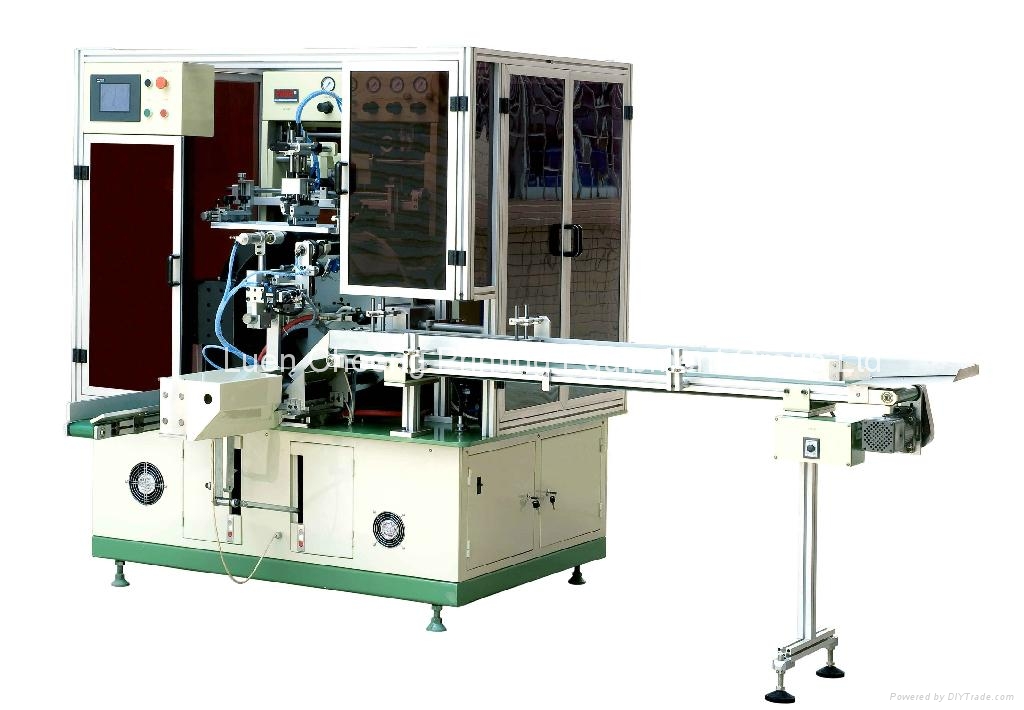

Full auot UV SCREN PRINTER is specially designed for the circular-shaped applications such as soft tubes, bottle caps and cream bottles. It also supports the operation of polychrome printing and accurate color register.
The main transfer system adopts famous Occident transmission equipment. With the help of accurate interval slicer in high speed, the system is able to realize the accurate transmission of division, which makes this machine perform stably at a printing speed of 3600 times/hour.

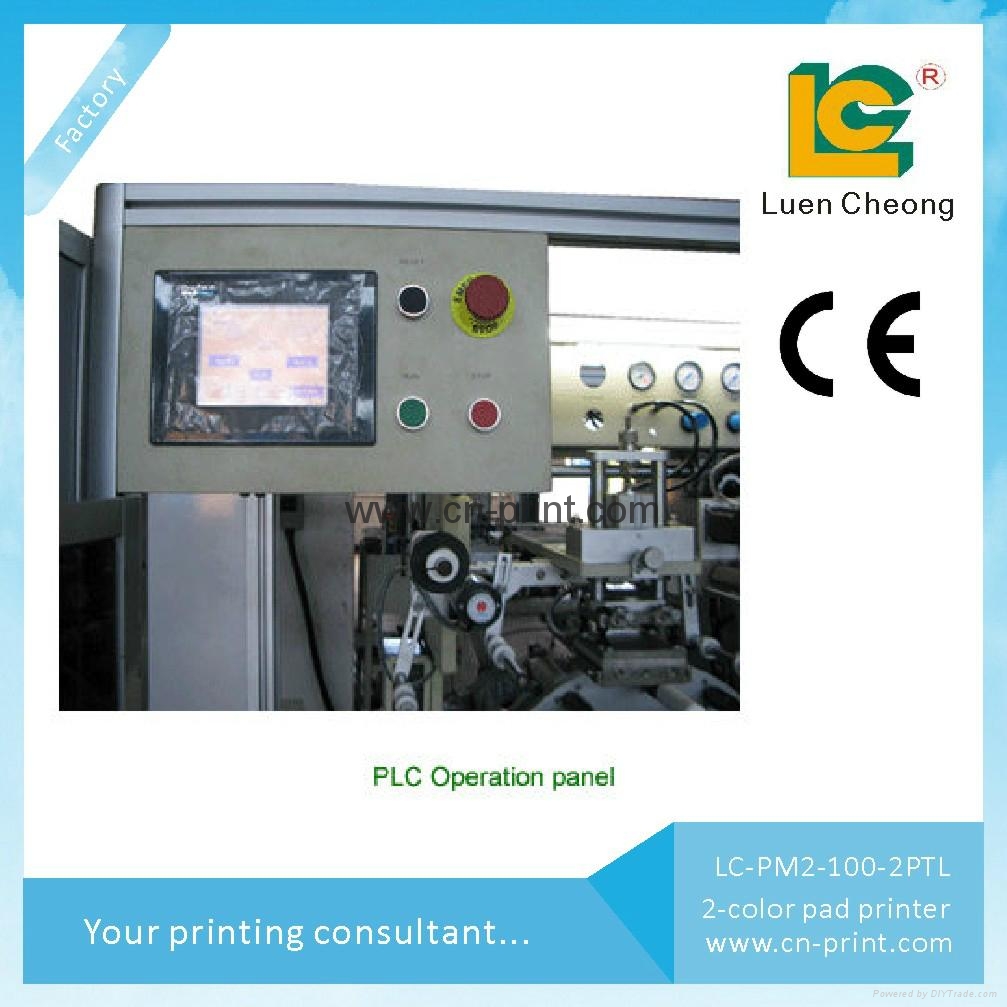

The control of this machine, PLC, enjoys a high reputation. Equipped with simple, convenient and fast touch screen system, man-machine conversation is possible, which makes the operation more handy.
As for the solidification of the printing ink, we use the ultraviolet for realization. The ultraviolet will facilitate the printing effects when the stable performance and electricity-efficiency are guaranteed.
The full-auto loading and unloading manipulator device system promises continual and stable printing work as well as the safety of operating personnel.
We provide machine design and construction services for special application
Mainparts
1. MAIN MOTOR----SITI ()
2. PLC---- Omron (Italy)
5. Switch---- Schneider (France)
6. CONTACTOR----: Schneider (France)
7. RELAY----Idec (Japan)
8. INVERTER----Omron (Japan)
9. UV CURING ----Primarc (Britain)
10. PNEUMATIC---Festo (Germany)
1. Model No：LC-VR12UV
2. Printing colors：1 color
3. Product appearance；Round bottle
4. operation：Full Auto
5. Max printing diameter：10--75mm
6. Printing Max Length：20-200 mm
7. Printing station：12 jigs
8. Max Printing speed：3600 Pcs/Hr
9. power：380V 50 MHz
10. Air pressure：0.6-0.8Mpa
11. wattage ： 4.5 KW
12. weight：1080 kg
13. Dimensions：L:1500 ×W:1180×H:1900mm
Price Terms --FOB or CFR
Payment Terms --T/T or LC
Packing --Wooden case
Lead Time ---15days after confirm PO
SKU ---8sets
Standards Certificate--- CE
Cubic Meter--- 5
Gross Weight ---1080kg
Main Parts FESTO CYLINDER (MADE BY GRMANY
|
