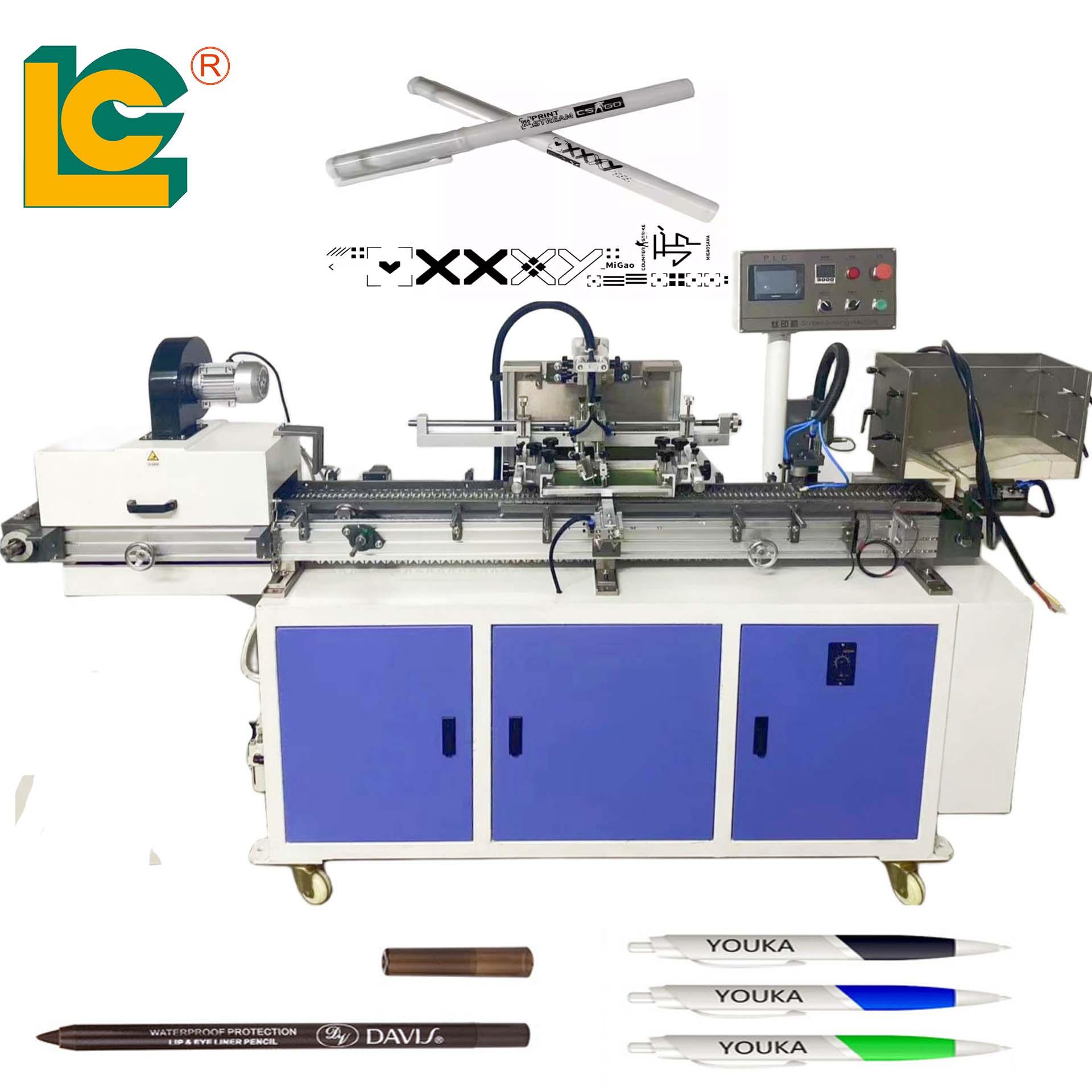

Automatic ballpoint pen eyebrow pencil monochrome screen printing machine.Suitable for round lighters, markers, Ballpoint pen, eyebrow pencil,and various round plastic tube.
Special Function:
1. One worker operate, Easy operation for stopping, cleaning screen printing plate, adding ink, etc..,
2. Substrate thickness range20-60 diameter(fixtures need to be customized)
3.The printing baesplate has the vacuum function(optional) which can keep the precision of registration.
4. High printing speed, output: 1800pcs/hour
5. Installed compressed air dust-abatement device to clean the printing objects before printing.
(The machine is designed according to many clients suggestions and their practical application. It is improved many times and all the time, easy operation and reliable quality)
Basic Function:
1. Almost Full electric control, low need compress air.
2. Loading and unloading printing objects automatically
3.The machine run smoothly, and the printing speed and printing stroke are adjustable.
4.Adopt UV ultraviolet radiation drying system, printing and drying can be finished at the same time.
Technical Parameter
1、Printing color: monochrome
2、Printing surface: round surface
3、Applicable material: plastic, glass
4、Model LC-R2060
5、Printing speed 1800 (pc/h)
6、Maximum printing area (length × width) 200X300 (mm)
7、Substrate thickness range 20-60 diameter (mm)
8、Max frame size 400X600 (mm)
9、Power supply 220V50HZ
10、UV power: 4KW
11、Switchboard power: 5.5KW
12、Dimensions 3000X900X1500 (mm)
13、Weight 600 (kg)
