Automatic Penholder Screen Printing machines Model is LC-YG. It able to have good printing quality, high speed printing system, easy to adjust, It it use for the printing of round type plastic or metal pens, small round tubes, medical syringes, chopstick, cosmetics lipstick tube, and so on.
The full auto printing system combine with the Automatic feeding & unloading system, Screen printing, UV or IR curing, with the non-class speed adjust,it is widely used in the pen printing factory and cosmetics manufacture.
you can print different diameter ball-point pen holders, pencil rod, and cosmetics such as lipstick tubes; the set of automatic feeding machine, printing, drying (with UV and heat dry two options ), automatic blanking and other automatic systems; can be variable speed; fill the gaps in the domestic industry, domestic stationery, cosmetics manufacturers the ideal choice.
Features:
1, automatic control, smooth running smoothly;
2, which could be printed cylindrical workpiece;
3, Block printing with vacuum suction function (optional), the workpiece positioning more accurate and reliable;
4, high-speed printing, print speeds of up to 4,000 / hour;
5, dust, flame processing unit (optional) or PP water treatment device (optional) pre-press processing system;
6, using IR infrared or UV ultraviolet (optional) drying system, printing, drying synchronization is complete;

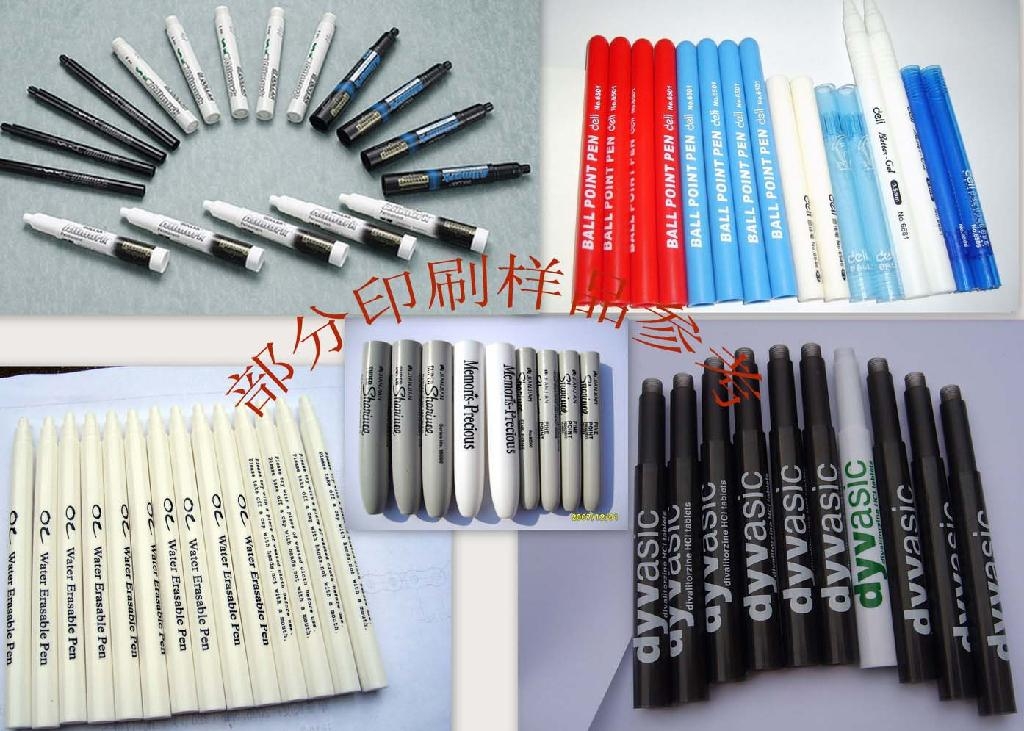

7, can be widely used in ball-point pen, hydrolysis of pens, pencils, markers, lipstick body, medical tubes and other objects of a single high-speed printing;
8, can product according to customer special requirements, design custom equipment.
Function:
1. Automatic feeding and unloading system, can be printing the object one or double at the same time.
2. Running smoothly with less noisy, can be adjust the printing distance & speed as you wish.
3. Control by Inverters for steady moving, ensure for good affect printing.
4. Adopt IR or UV drying system, it can finish the printing and drying at the same time,
1． Model No：LC-YG
2． Printingcolors：1 color
3． Product appearance：round
4． Operation：Full Auto
5． Printing Diameter：Ф4--Ф18mm
6． Printing speed：4000Pcs/Hr
7． Power：220V/50Hz 4.1kw
8． Weight：530（kg）
9． Dimensions：3100×1540×1200（mm）
Price Terms --FOB or CFR
Payment Terms --T/T or LC
Packing --Wooden case
Lead Time ---15days after confirm PO
SKU ---8sets
Standards Certificate--- CE
Cubic Meter--- 2.8
Gross Weight ---530kg
Main Parts FESTO CYLINDER (MADE BY GRMAN
