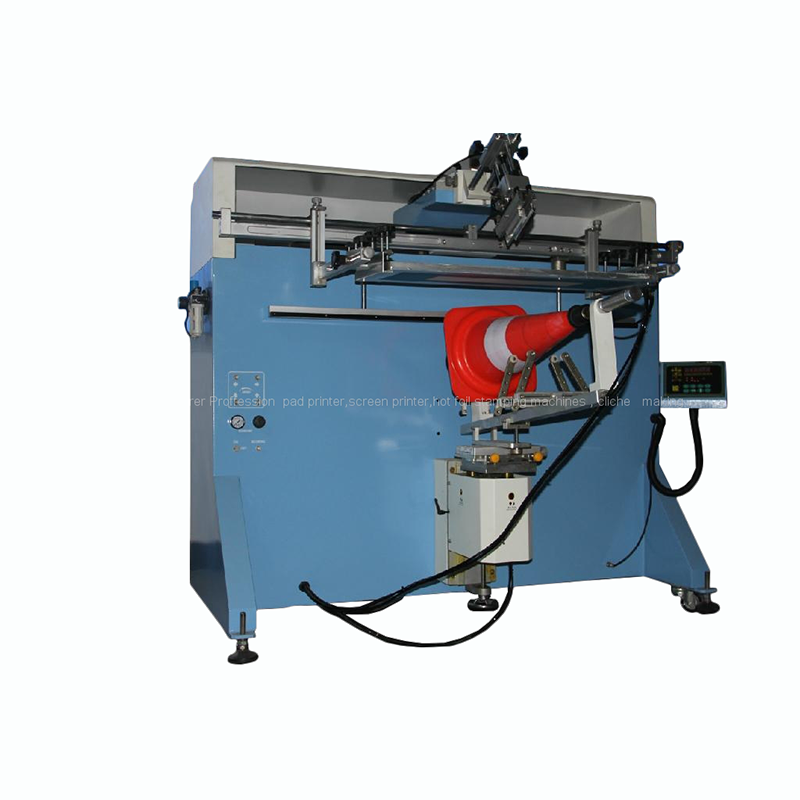

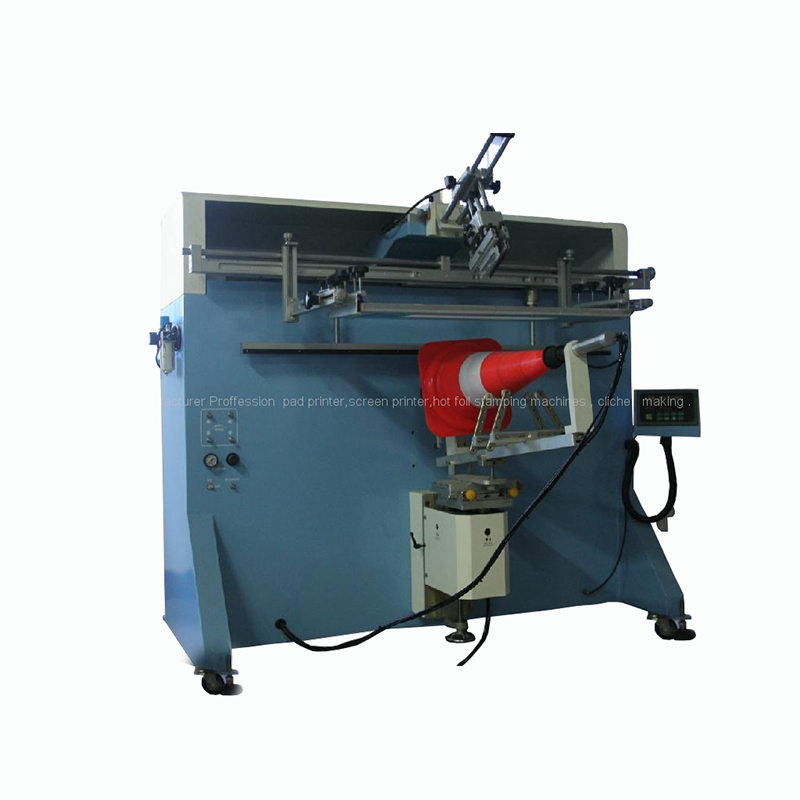

LC-700E Cylinder screen printer
This item cylinder screen printers fit to print plastic, glass, ceramics, wood, metal, and other hard material made of the cylinder, cone, an oval surface of the printed product. For example, our cylinder screen printer can print products including Lipstick case, cosmetics bottles, detergent bottles, beverage bottles, cups, filters, cans and so on.
Advantage:
1. Microprocessor controls, high automation and easy operation.
2.4-digit auto counter built-in.
3. With the function of cylindrical and conical printing.
4. Automatic ink scraping, ink withdrawing and worktable lifting.
5. Printing stroke and speed is adjustable to meet different needs.
6. Automatic squeegee balance-keeping ensures equal printing pressure.
7. Worktable and screen frame can be adjusted slightly in horizontal and vertical direction.
8. High precision printing and easy adjustment.
1. Model No.: LC-PA-700E
2. Product appearance: Round /oblate/flat
3. Max printing diameter: Φ220mm
4. Max printing area:350*670mm
5. Max product gradient: <14º
6 Printing Speed: 900 PCS/H
7. Air pressure: 6 bar , 50W
8. Power supply: 220V/50Hz,110V/60Hz
9. Machine weight:210KG 10. Machine size: 1200x1180x1450mm
|
Model number
|
LC-PA-300E
|
LC-PA-400E
|
LC-600E
|
LC-700E
|
LC-1200E
|
|
(Round)Max Printing diameter
|
82 mm
|
120mm
|
180mm
|
220mm
|
375mm
|
|
(Round)Max printing area
|
300×260mm
|
300×360 mm
|
300×570mm
|
350×670mm
|
420×1170mm
|
|
(oblate)Max printing diameter:
|
420mm
|
500mm
|
/
|
/
|
/
|
|
(flat) Max printing area
|
260*220mm
|
320*; 220mm
|
/
|
/
|
/
|
|
Max Workpiece rake
|
<14°
|
<14°
|
<14°
|
<14°
|
<14°
|
|
Air pressure
|
6bar
|
6bar
|
6bar
|
6bar
|
6bar
|
|
power
|
50W
|
50W
|
50W
|
50W
|
50W
|
|
Voltage
|
AC110V/220V
|
AC110V/220V
|
AC110V/220V
|
AC110V/220V
|
AC110V/220V
|
|
Printing speed
|
1300P/H
|
1200P/H
|
1100P/H
|
900P/H
|
800PH
|
|
Machine appearance（mm）
|
850×850×1280
|
1080×850×1280
|
1200×1100×1450
|
1200×1180×1450
|
1720×1600×1650
|
|
Machine weight
|
120kg
|
145kg
|
200kg
|
210kg
|
230kg
|
Testing Please provide:
1.110V or 220V power supply.
2.5-7 bar compress air.
3. Esposal screen plate 1 pcs.
4. A jig 1pcs.
5.5-10 pcs product samples.
Price Terms ---FOB Shenzhen,China or CFR
Payment Terms --T/T or L/C
Packing ---Plywood case
Lead Time--- 5 days after confirm Payment.
SKU --18set
Standards Certificate--- CE
Cubic Meter--- 1.8
Machines Fittings ---Screen Cliche
Gross Weight ----115KG
Main Parts FESTO cylinde made by Geramny
Application area detergent bottles, Pens, beverage bottles, cups, cans, , Cosmetics package box, lipstick tube
|
