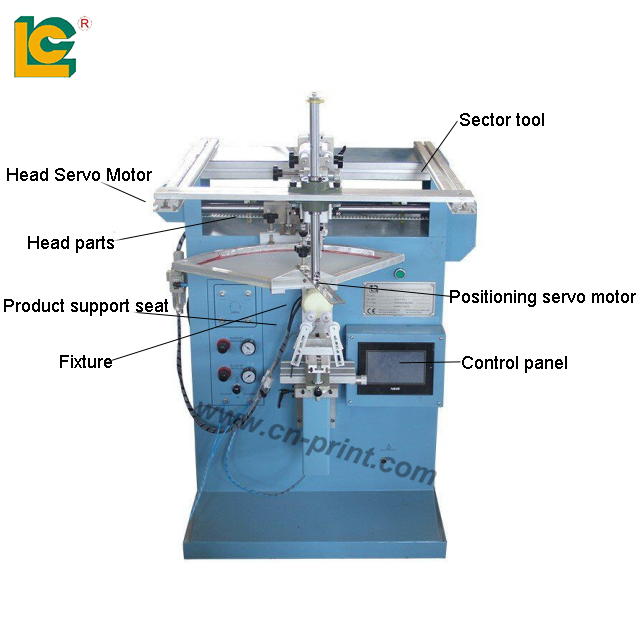

fan-shaped Cylindrical Screen Printing Machine Bottle Stand

Applications:

 The machine screen frame is a fan-shaped screen frame. It is very suited for cone cups, round cups printing. The fan-shaped screen printing machine has one servo system, a PLC touch screen.

Features:

1. Using international famous brand pneumatic components, the controller performance is stable and reliable. The machine body adopts alloy die-casting parts, and the fan-shaped tooling also adopts wear-resistant shaft sleeve. The whole machine is light and strong, and the system is stable.

2. Foot pedal and touch screen control switch, simple and convenient operation.

3. Fan-shaped tooling and ordinary tooling can be replaced according to the product, easy to replace, "one machine with dual use".

4. The product rotation is controlled by a Panasonic servo motor, which can rotate to the point, and add a color sensor(customizable)to accurately register the color.

Specification:

1. Model number: LC-350F

2. Product appearance: Round/Cone

3. (Round)Max. Printing diameter: 100mm

4. (Round)Max printing arc length: L: 250mm

5. Printing Speed: 1400 PC/H

6. Air consumption: 30 litre/min 6bar

7. Voltage power: AC220V±10% 50/60Hz

8. Machine Size: 1100*980*1480mm

9. Machine Weight: 200kg

10. Power: 650W
