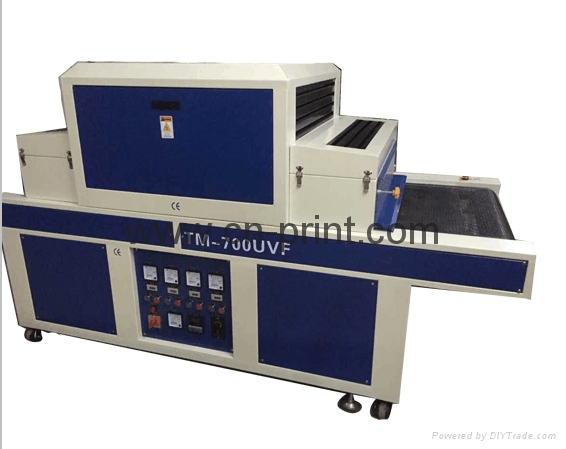

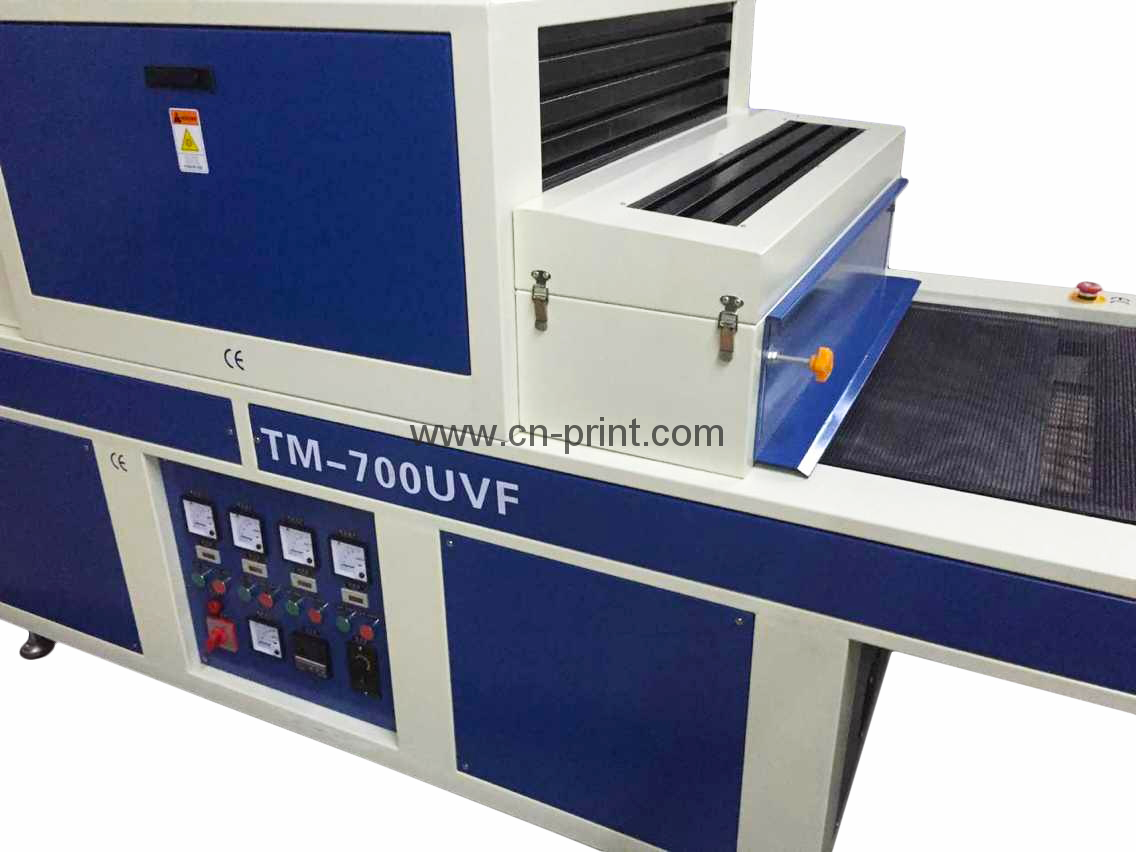

Shoes UV curing machine TM-700UVF-A with 4pcs 5.6KW UV lamp
UV Curing Machine TM-700UVF-A be fit to UV curing drying for Shoes, plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics
1. Model NO. TM-700UVF-A
2.UV Drying products：700*100*2000mm
3.Conveyor belt size：L2200* W700MM
4.UV Lamp power：4PCS*5.6KW /380V
5.Total wattage：23KW
6.Wind fan wattage: 1000W/380V
7.Motor wattage:1000W/3P/380V
8.Conveyor speed:0~10m/min
9.Speed change ways: Continue
10. Dimension: L*W*H2120*700*1350
11.Weight:350kg
note:1 good Teflon belt which can bear the high temperature
2 add 1 set intensive air cooling extraction controlled with thermostat
3 install a vacuum suction system internal the tunnel very very strong for the conveyor
