UV curing system manufacturers UV curing machines TM-700UVF-B use for connecting with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc.
Applications: It applies to the gold and silver cardboard, metal, glass, plastic, and other substrates printed wrinkles, scrub, refraction, light crystal stones, colorful powder, convex oil, snow, and other special effects, and offset print UV offset ink light cured.
Features:
1. According to offset parameters made. Required to provide matching offset spout length, the whole width, height, and tilt angle of UV machine.
2. UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour.
3. Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing.
4. Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light-emitting electrode, filled with the high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance.
5. This UV lamp than a common UV lamp temperature of less than 40%, a UV lamp intensity of more than 100%.
Specifications Flat UV dryer machine for printing ink
1. UV Lamp lifetime can reach 1000-1200 hr
2. UV lamp operating temperature is 50 degrees.
Product Description:
Product name

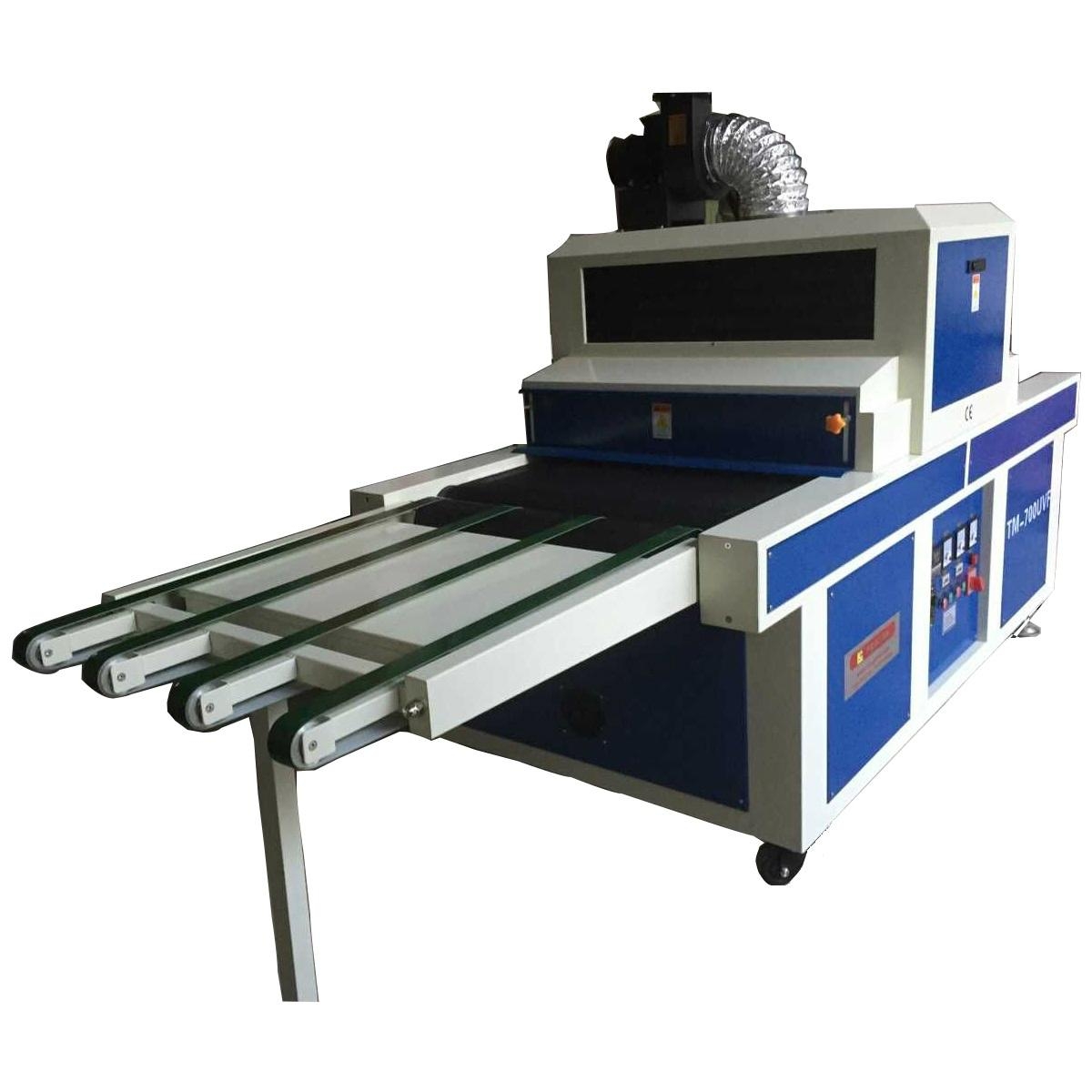

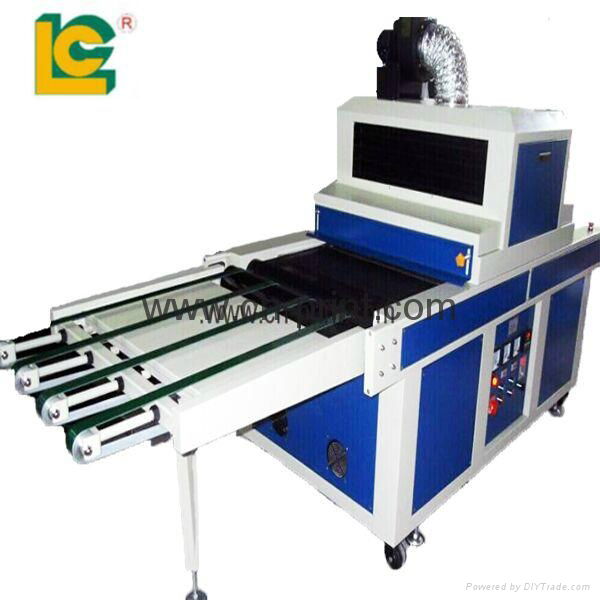

TM-700UVF-B Plane Surface UV dryer machine for printing ink with heidelberg printing machine transmit bridge
Model No
TM-700UVF-B
Certificate
CE, ISO-9001-2000
Brand Name
LC,China
Description
Our UV Curing Machine TM-700UVF-B be fit to UV drying , Paper UV PRITNING ,UV POLISHING , PVC,PET , PCB after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating energy is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics
Advantage
1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area
Parameter
1. Model NO. TM-700UVF-B
2. UV Drying products---700*100*2000mm

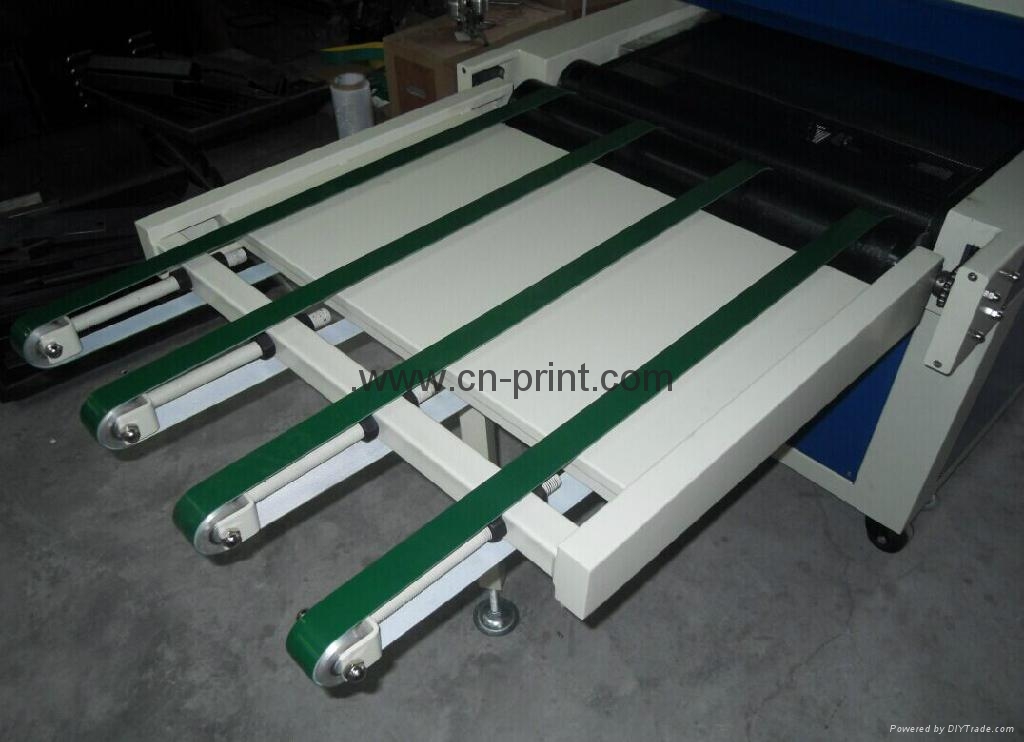

3. Conveyor belt size---L2000* W700MM
4. UV Lamp power---2PCS*5.6KW /380V
5. Total wattage---13KW
6. Wind fan wattage---500W/380V
7. Motor wattage---1000W/1P/380V
8. Conveyor speed---0~30m/min
9. Speed change ways---Continue
10. UV Machine Dimension---L*W*H2020*900*1350
11. Weight---380kg
Usage
This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc
High Speed UV curing machine
Free fittings
1Set/Sets
customer
USA, UK, Germany, Spain, South Africa,
Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc
Delivery time
Within 7 days from the receipt of payment
Loading seaport
Shenzhen or Hong Kong, China
package
Plywood case/wooden case/ as required
Price term
FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment
term
100% T/T in advance(negotiation)
Price Terms︰
FOB Shenzhen
Packing︰
wooden case
Lead Time︰
7 working days after comfirm the payment
Standards Certificate︰
CE
Application area︰
This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc High Speed UV curing machine
